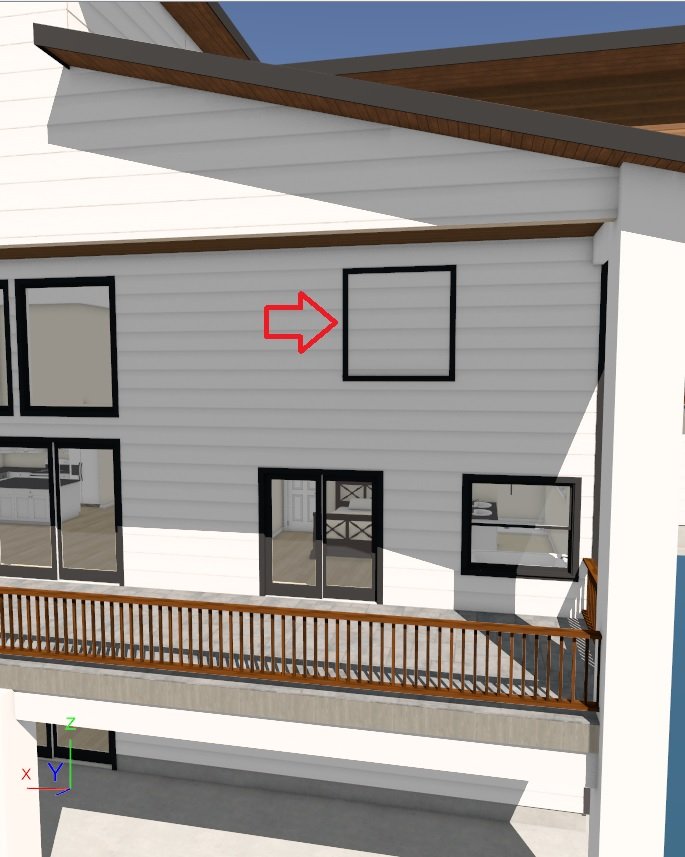

TheMadCadder Posted March 31 Share Posted March 31 My first major glitch...anyone have an idea why the exterior siding shows in this one window in the attached image? Link to comment Share on other sites More sharing options...
Rookie65 Posted March 31 Share Posted March 31 A wall likely auto-rebuilt. Copy the window location, then check the walls to see if one or more says "Polyline produced by 3D wall editor." Delete it, and If you go too far, the wall you need will disappear. Then just just back up a step to put it back. Then you should be able to place the window you copied back. Sometimes the walls could be misaligned too. Without a plan to look at, it's just guesswork at this point Link to comment Share on other sites More sharing options...
TheMadCadder Posted May 6 Author Share Posted May 6 HELP!! Project file attached. So I've recreated this model from scratch, exterior only, trying to get around this issue. New model file attached...same wall. Upper floor windows in the rear wall wont cut their openings. I've isolated the issue...vaguely...to setting part of the space inside to "Open Below" in room definitions... Any help would be greatly appreciated as I now need to deliver these plans and I need the 2d elevations to do that. 850 HEIM NEW.plan Link to comment Share on other sites More sharing options...
Solution y-g-m-n Posted May 7 Solution Share Posted May 7 the back wall as drawn is on first floor but you have few windows in tha wall drawn on 2 floor. windows have to be drawn on same floor as wall. Link to comment Share on other sites More sharing options...
TheMadCadder Posted May 7 Author Share Posted May 7 5 hours ago, y-g-m-n said: the back wall as drawn is on first floor but you have few windows in tha wall drawn on 2 floor. windows have to be drawn on same floor as wall. Hey @y-g-m-n, I really appreciate your taking the time to reply, that was the issue and it is now fixed on my end! Plans are off to the engineer. Link to comment Share on other sites More sharing options...
