SC_drafting Posted yesterday at 12:38 AM Share Posted yesterday at 12:38 AM I'm trying to dimension this floor plan, and for some reason some of the windows and door are showing the rough opening size and some are showing the exact size. I only want the RO size displayed. I went into the dimension settings and set it to RO's, but it hasn't fixed the issue. Any ideas? Inconsistent Window and Door Measurements Problem.pdf Link to comment Share on other sites More sharing options...

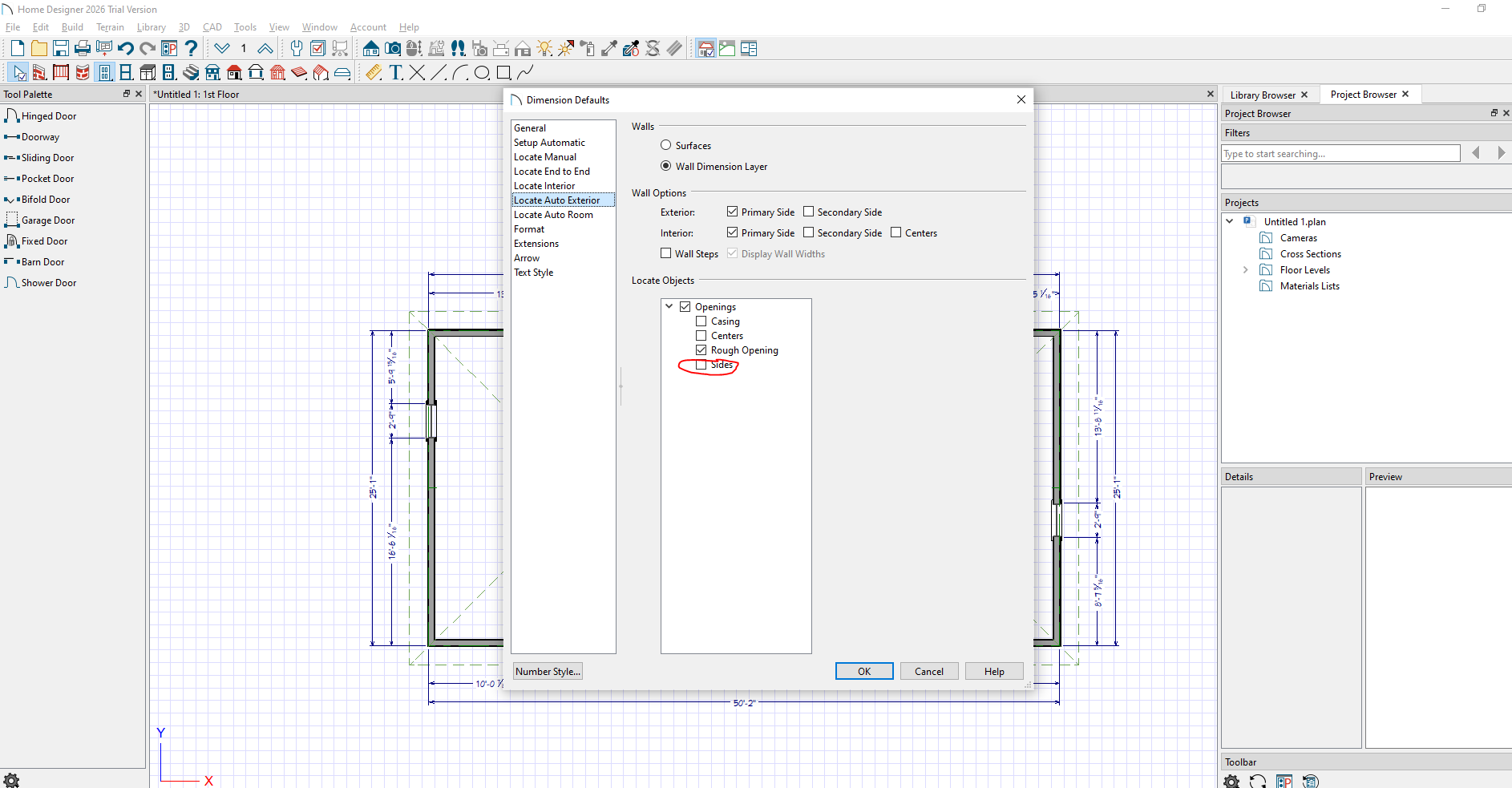

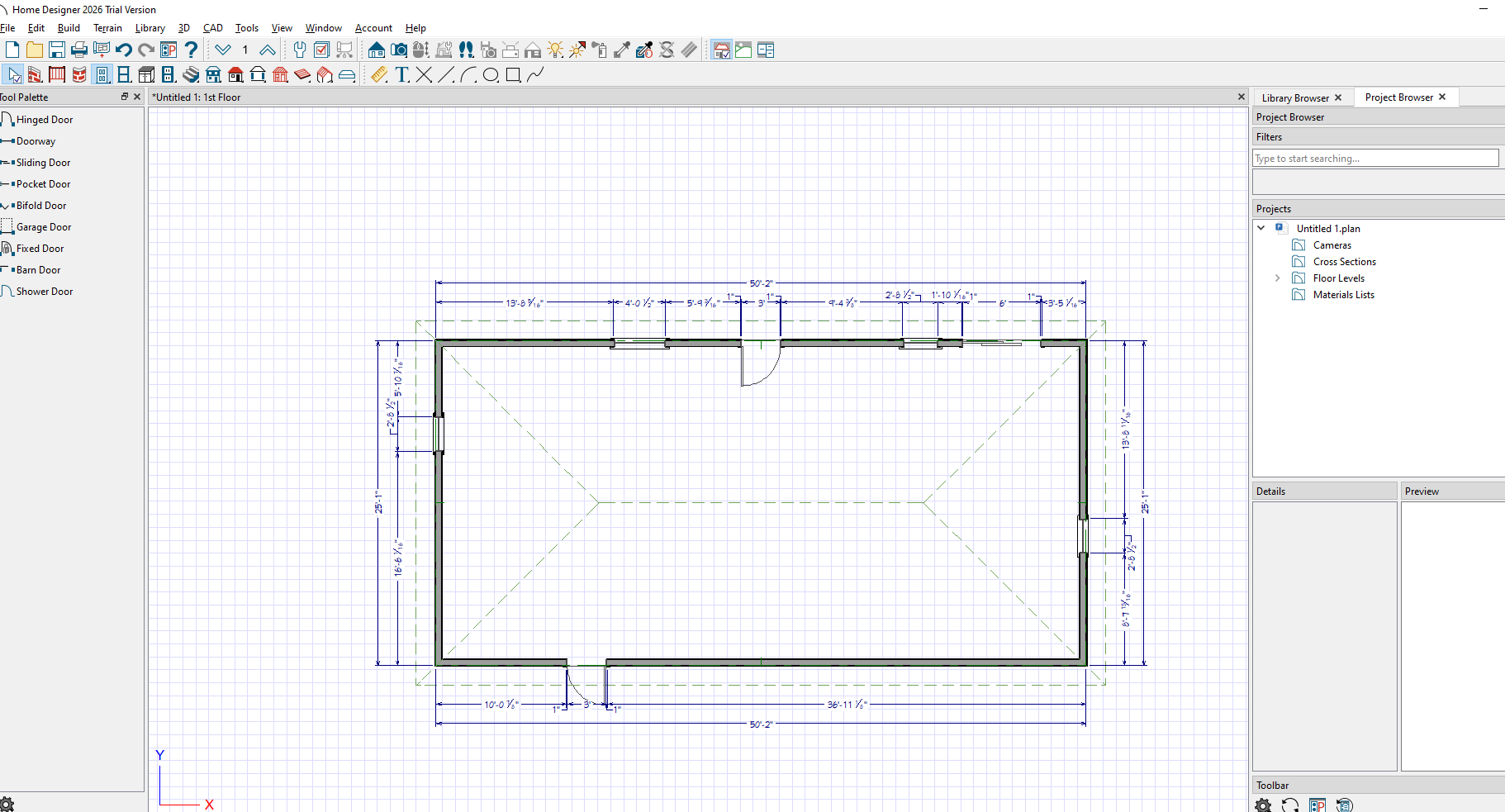

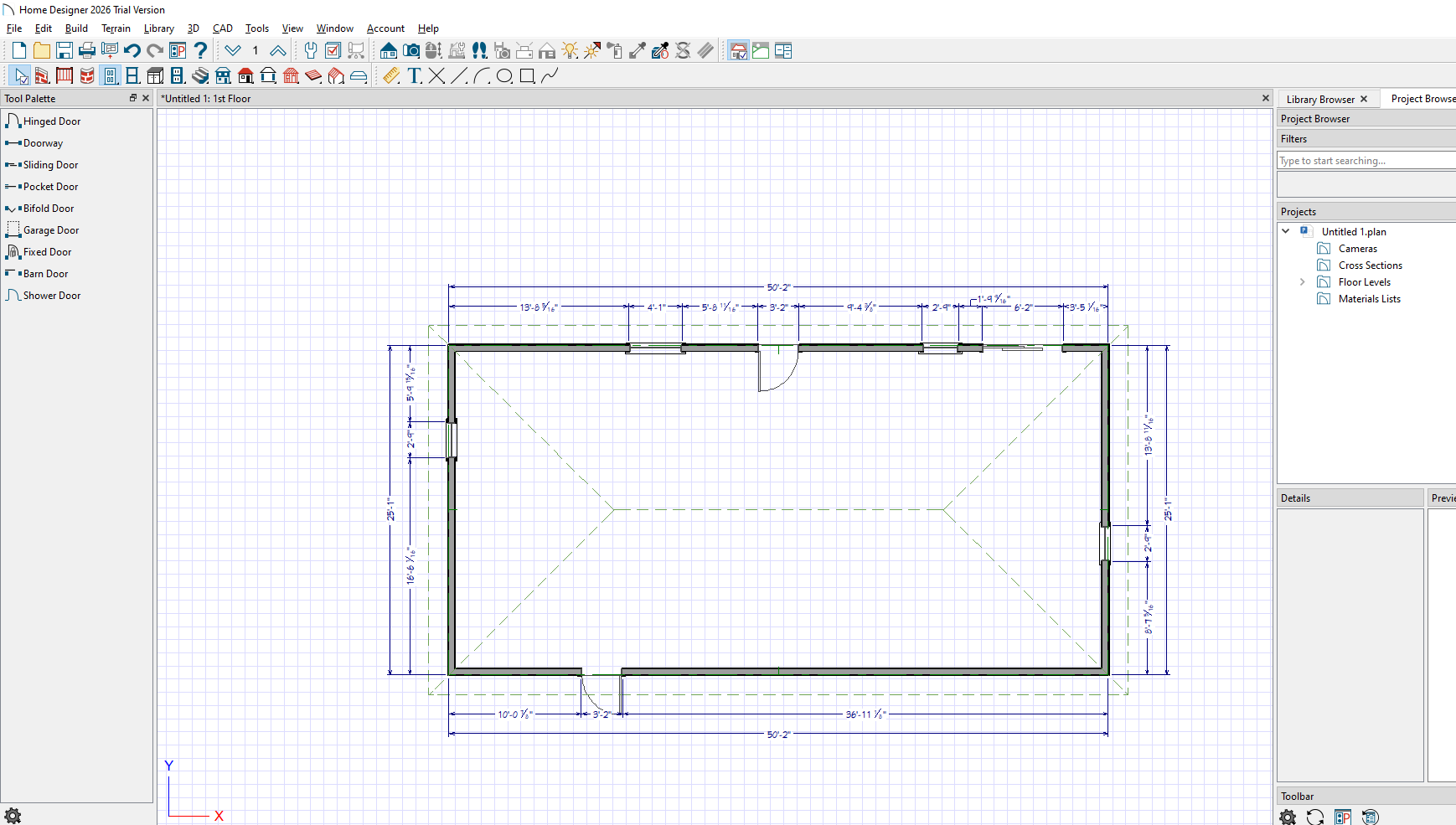

Garybills Posted yesterday at 12:59 AM Share Posted yesterday at 12:59 AM Check the Dimension defaults to be sure you unchecked the sides. I got different dimensions when both are checked and all RO when the sides are unchecked. Link to comment Share on other sites More sharing options...
