Complex roof framing - generate workable plan?

[ksujeff99]

Hey everyone,



I started using HD yesterday to create a realistic rendering of a three season porch addition I'm doing for my house. I needed to convince my HOA to allow my gable/shed/gable roof design. I was successful - project approved!

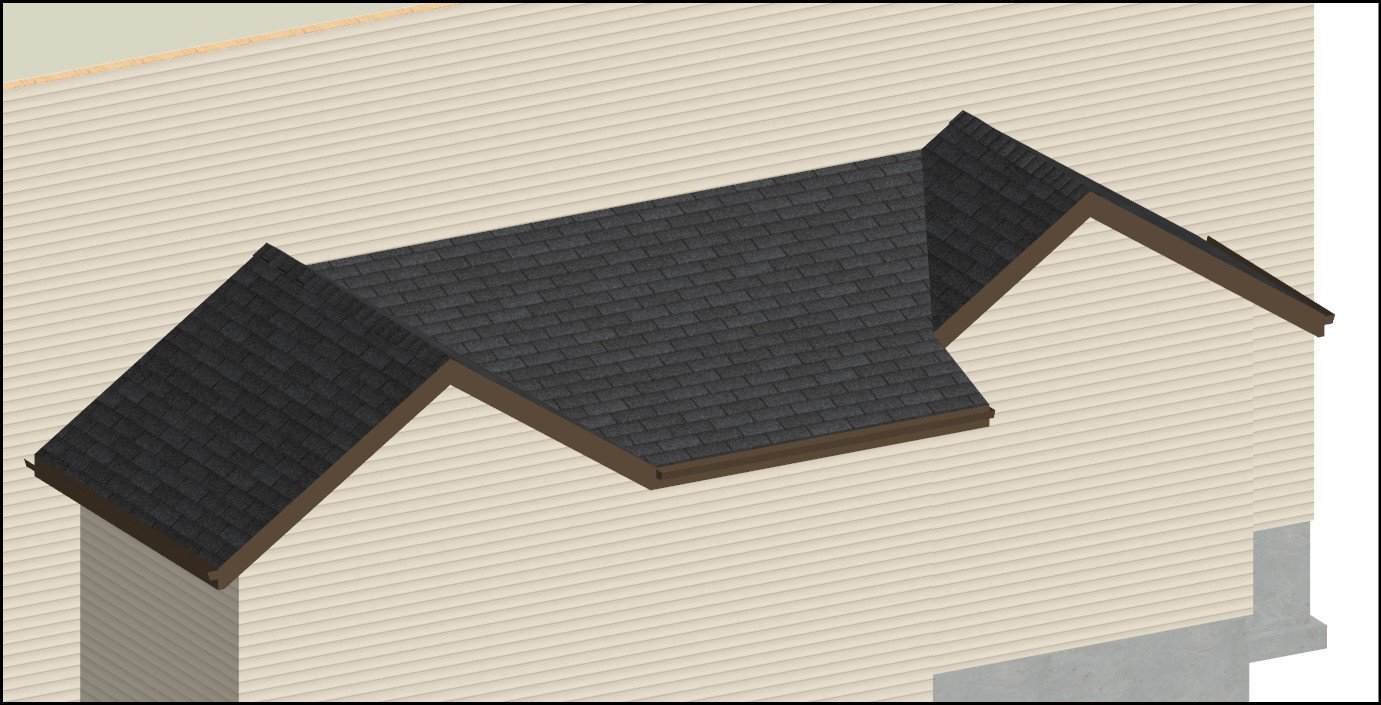

In this image, the smaller gable on the right is the existing house. I'm adding the left gable and shed roof in between. The deck is existing as well (although it's being essentially rebuilt for this project). Windows will be those vinyl-glazed three season porch windows that many companies make these days.







My question is about the capabilities of HD2026. My roof planes are just mocked together - not framed correctly in any way (as in the new gable roof extends under the shed roof). Is there any way to join these three roofs together in HD and generate an accurate framing plan? Or is a mock-up as much as I should expect from this tool?

[y-g-m-n]

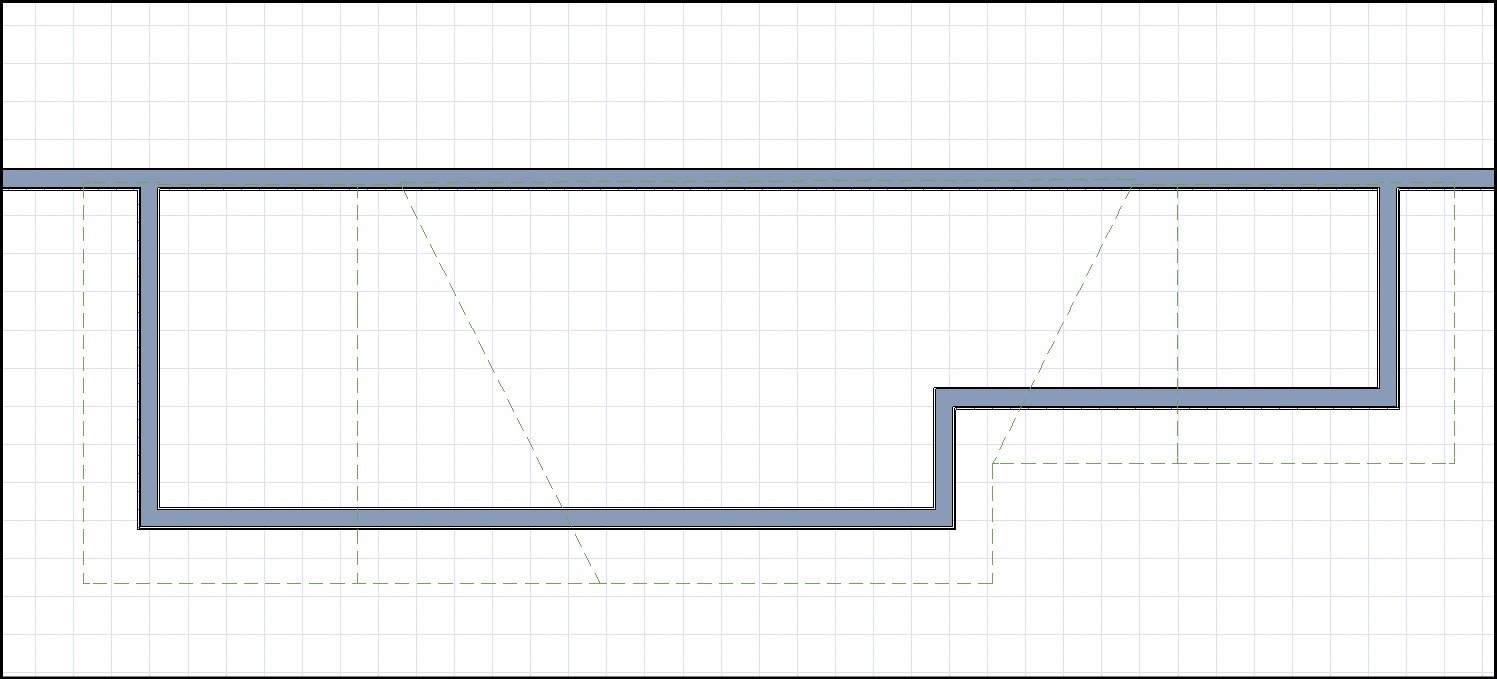

If you create it using manual roof planes with any HD pro version

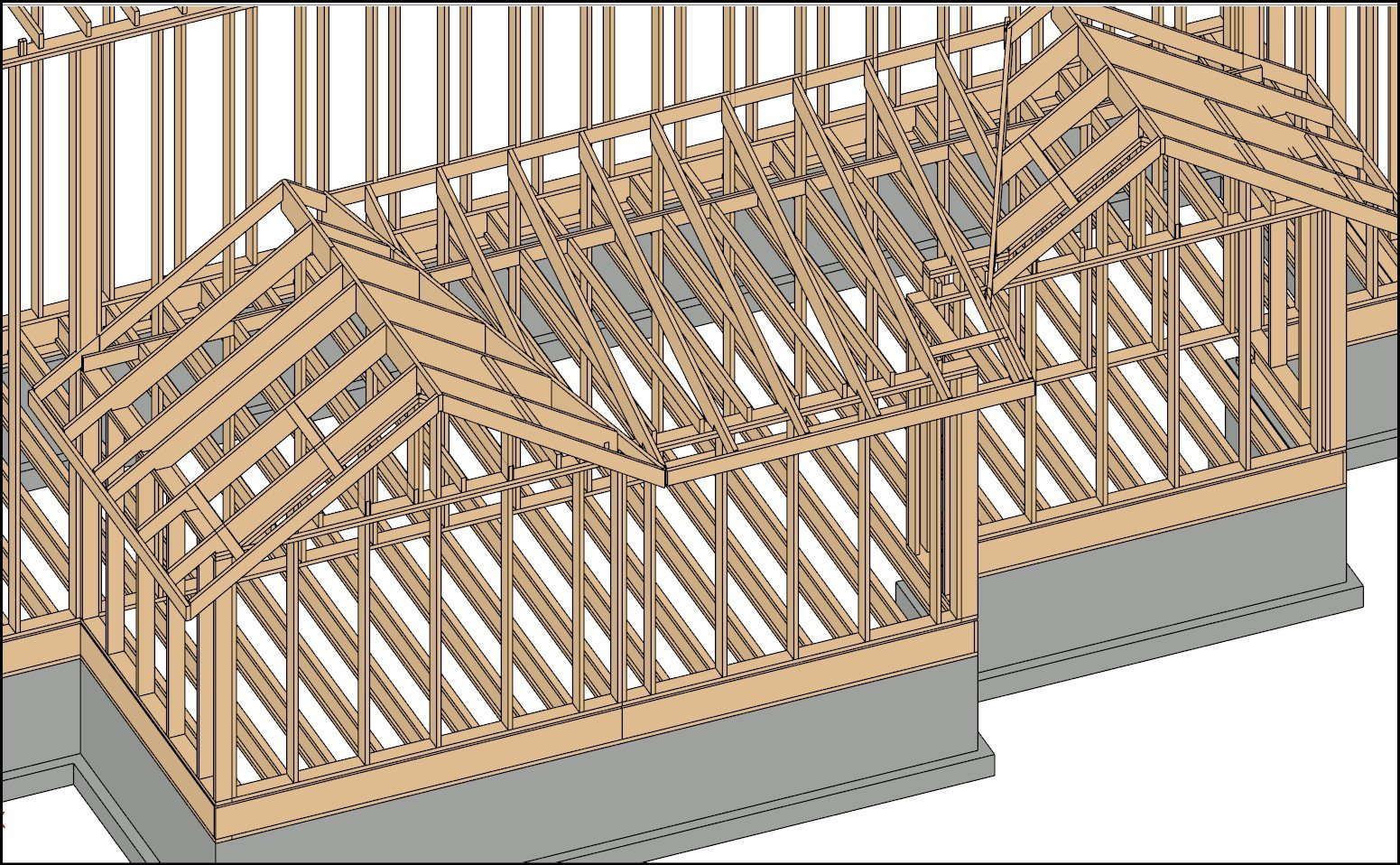

Then when done with that go back to framing tool and AUTO frame it will add framing for the roof planes you created.



No need to upgrade I can see
