HVAC No.3 Registers and Grates


3D Library - HVAC No.3 Registers and Grates

Use this catalog in conjunction with our other HVAC tools and catalogs to flesh out your ventilation system, returns, and registers. Wall mounted registers and access panels leverage the "Cuts Hole in Wall" feature to automatically create openings for the ductwork.

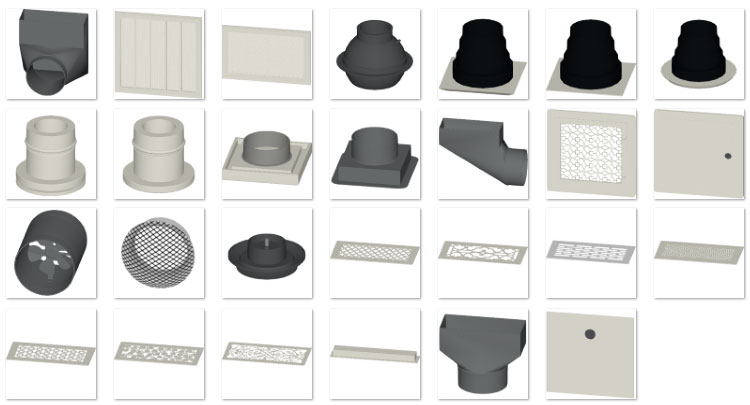

Items included:

HVAC No.3 Registers and Grates
    Access Panels
        Air Filter Grille
        Air Filter Grille - Square
        Hinged Access Panel
        Horizontal Access Panel
        Vertical Access Panel
    Ceiling Diffusers
        Aluminum Spot Diffuser
        Ceiling Diffuser 1
        Ceiling Diffuser 2
        Ceiling Diffuser 3
        Ceiling Diffuser 4
        Ceiling Diffuser 5
        Ceiling Diffuser 6
        Mini Diffuser
        Slot Diffuser
    Inline Duct Accessories
        Inline Duct Booster Fan
        Inline Fan Grill
    Register Boxes
        90 Degree Register Box
        Ceiling Register Box
        End Register Box
        Universal Register Box
    Register Covers
        Register 1
        Register 2
        Register 3
        Register 4
        Register 5
        Register 6
        Register 7
